Model specifications
LJN5180TXCEQ6 Vacuum Sweeper
- Overall dimensions
- 7920 × 2500 × 3150 mm
- Wheelbase options
- 4500 / 4700 mm
- Tyres / quantity
- 10.00R20 / 6
- Total mass
- 18000 kg
- Maximum tipping angle
- ≥45°
- Hopper capacity
- 12 m³
- Debris pickup efficiency
- 99% (brochure claim)
- Unloading
- Rear-tipping automatic dumping
- Maximum sweeping area
- 20000–86000 m²/h
- Dust filtration
- 320 × 320 × 80012 precision filter cartridge (printed notation)
- Emission standard
- GB17691-2018 China VI
- Engine model
- B6.2NS6B230
- Displacement
- 9.73 L (printed; confirm with engine model)
- Engine power
- 166 kW / 1800 rpm
- Auxiliary engine
- 125 kW / 170 hp
- Fuel
- Diesel
Displacement and filter notation are reproduced from the brochure and require confirmation against the build sheet.
Brochure configuration options. Final build, condition and availability are confirmed in the quotation.
PHOTO COLLECTION

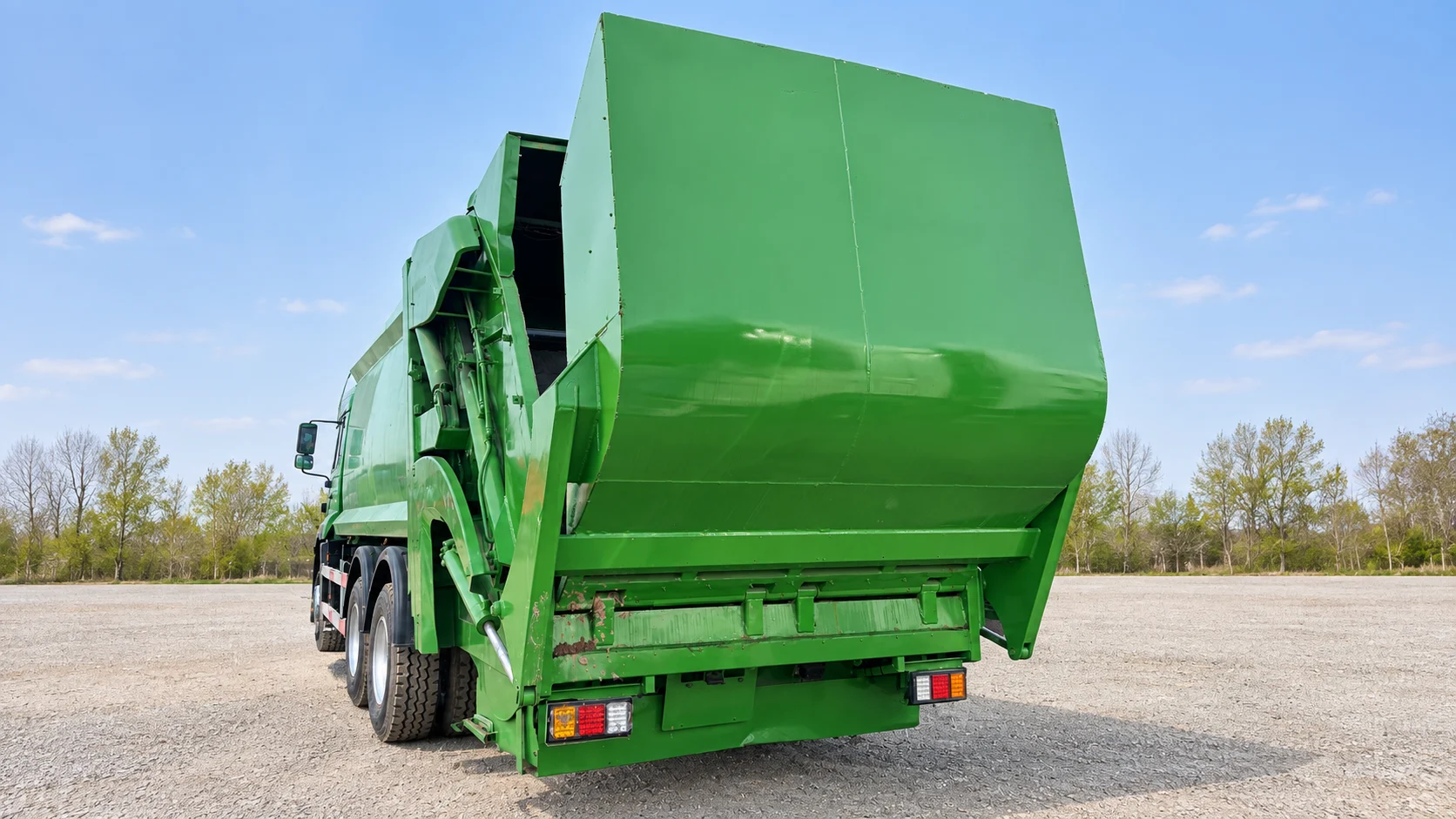

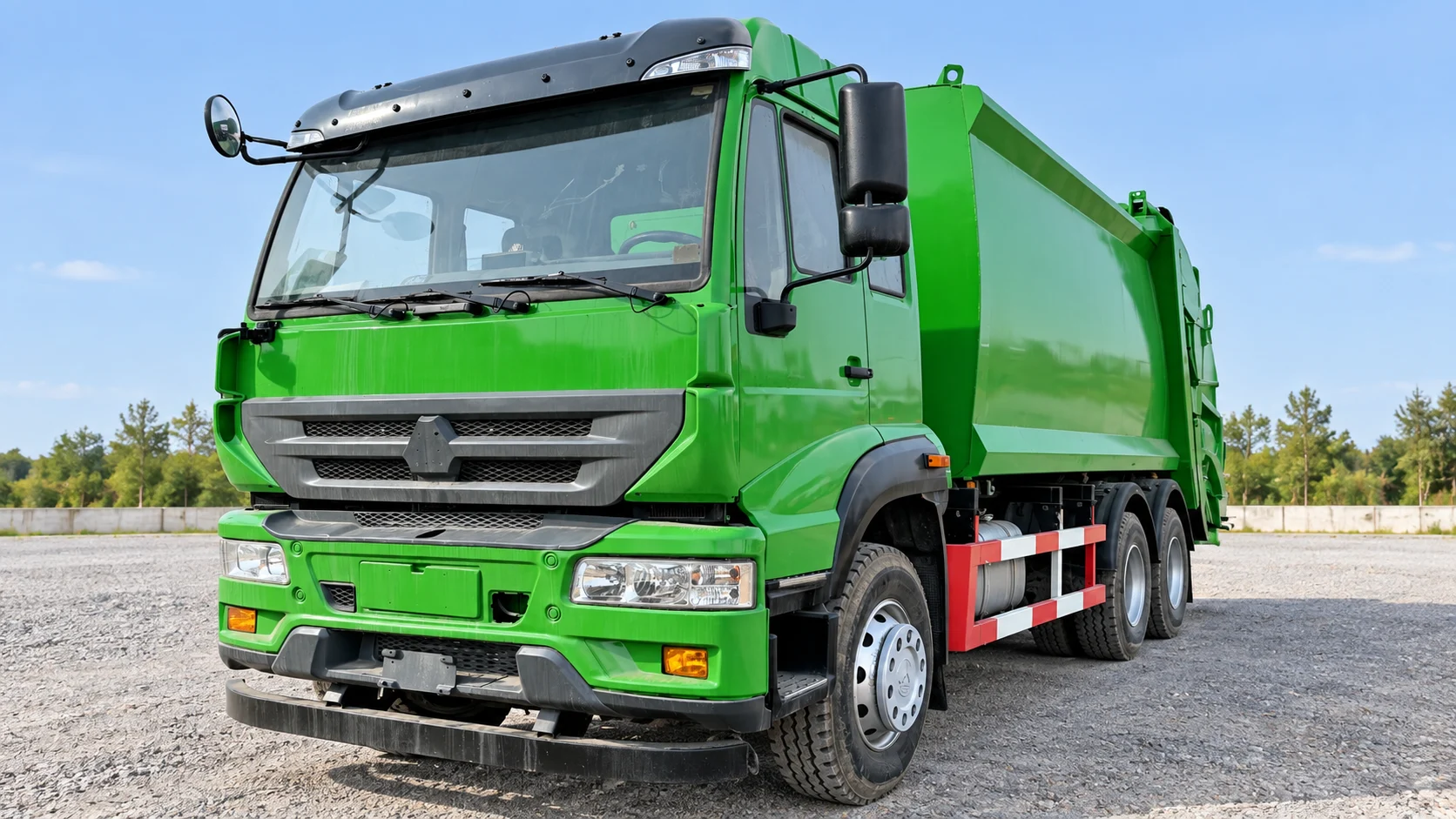

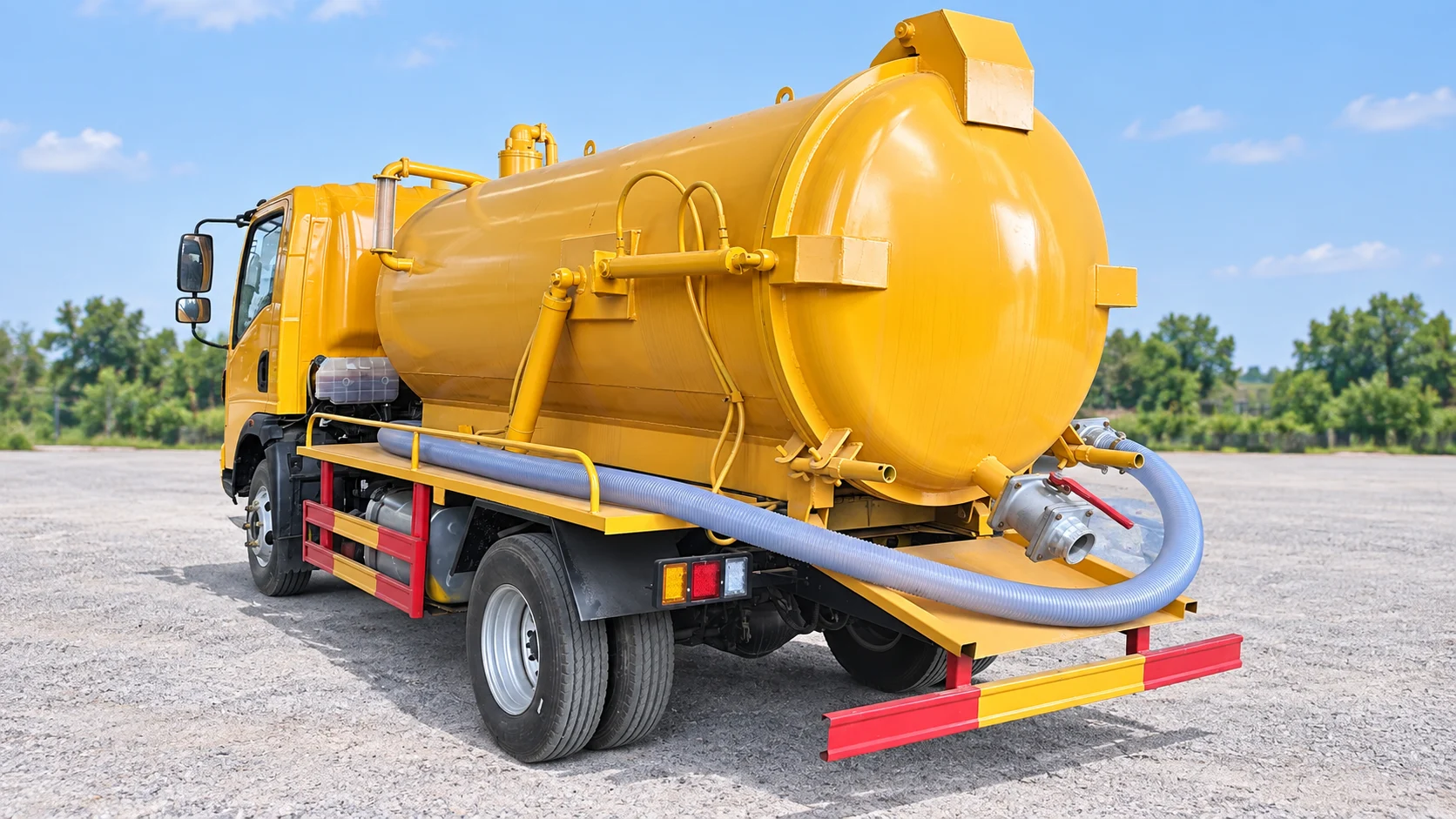

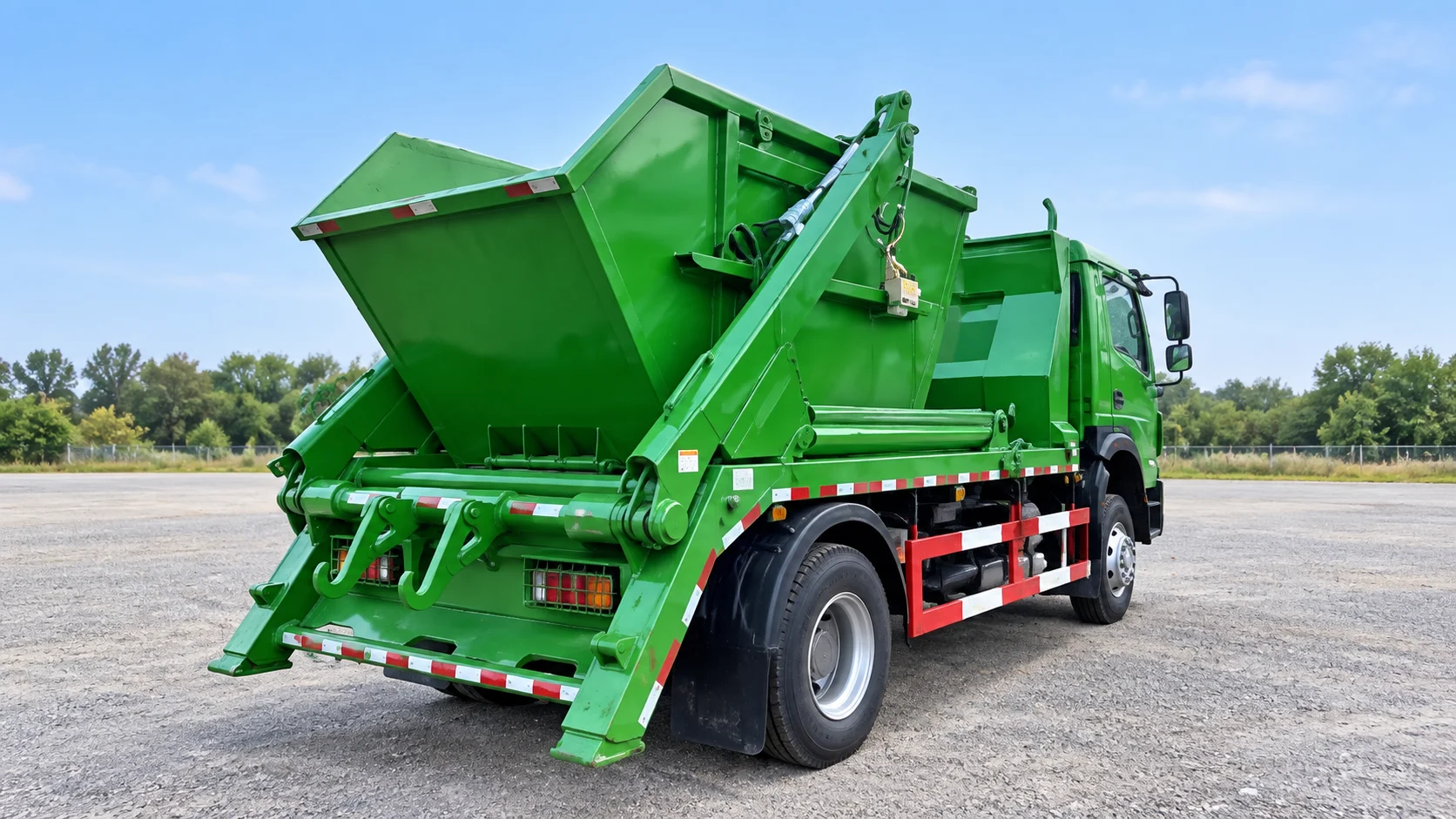

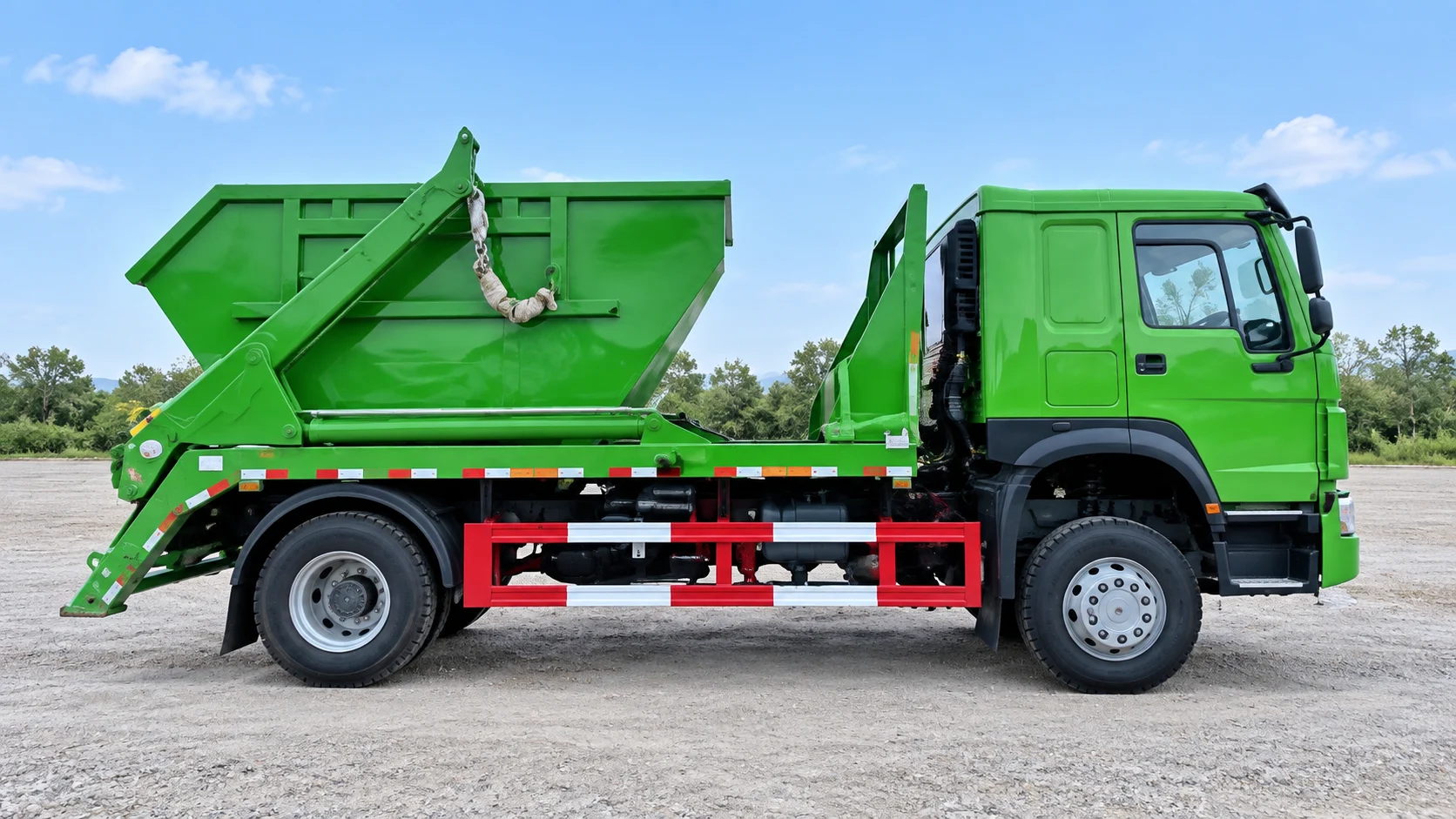

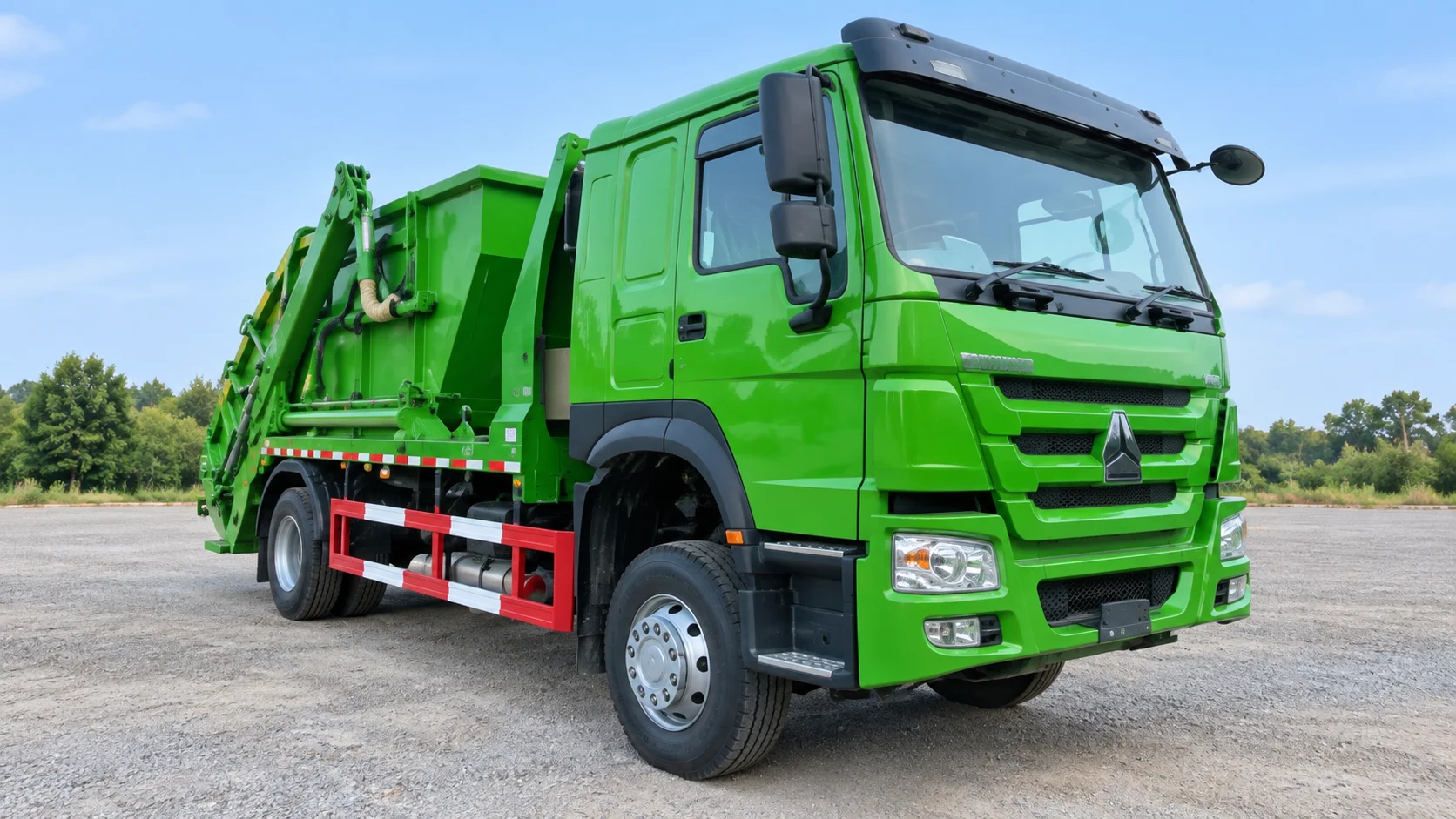

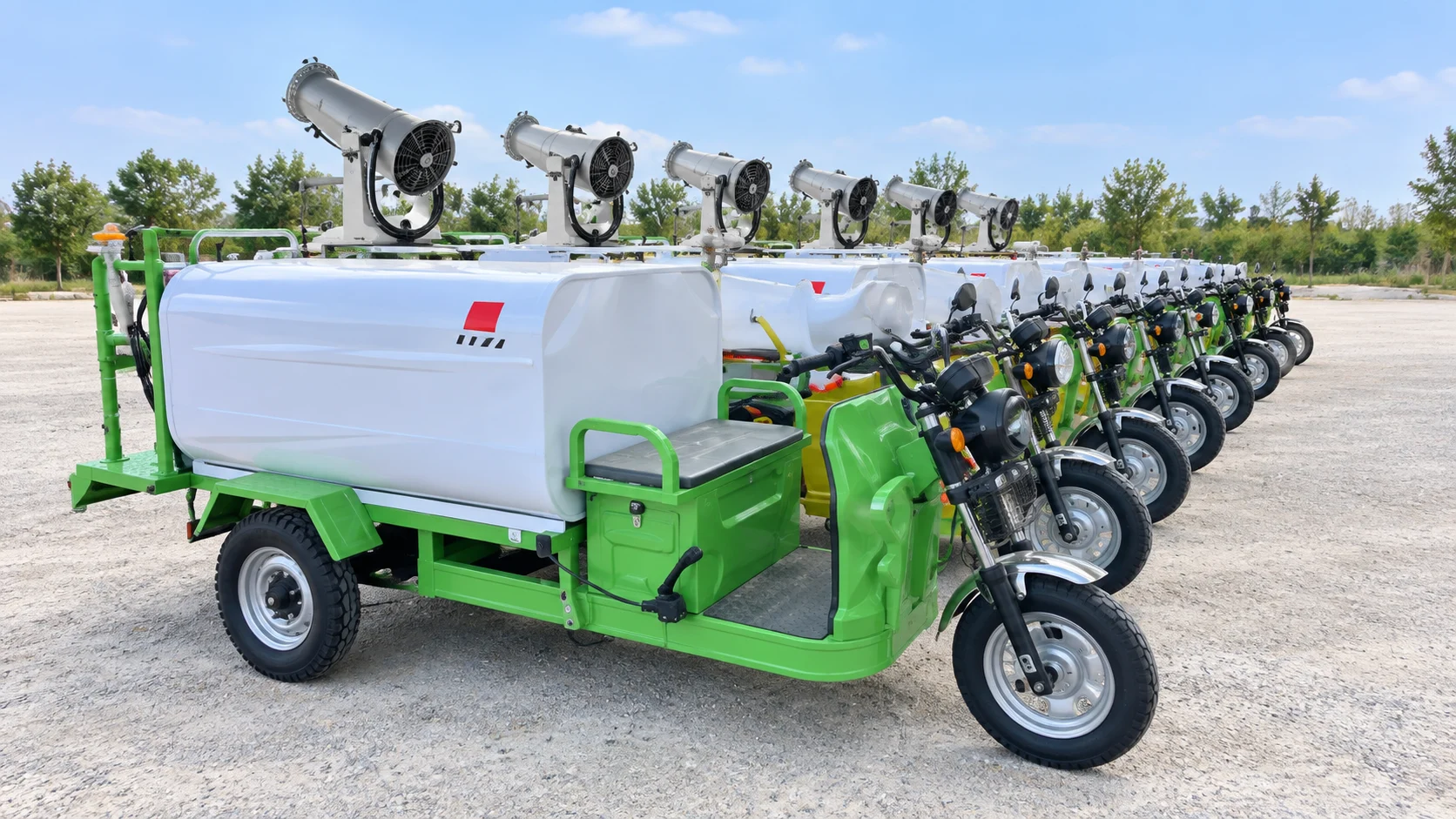

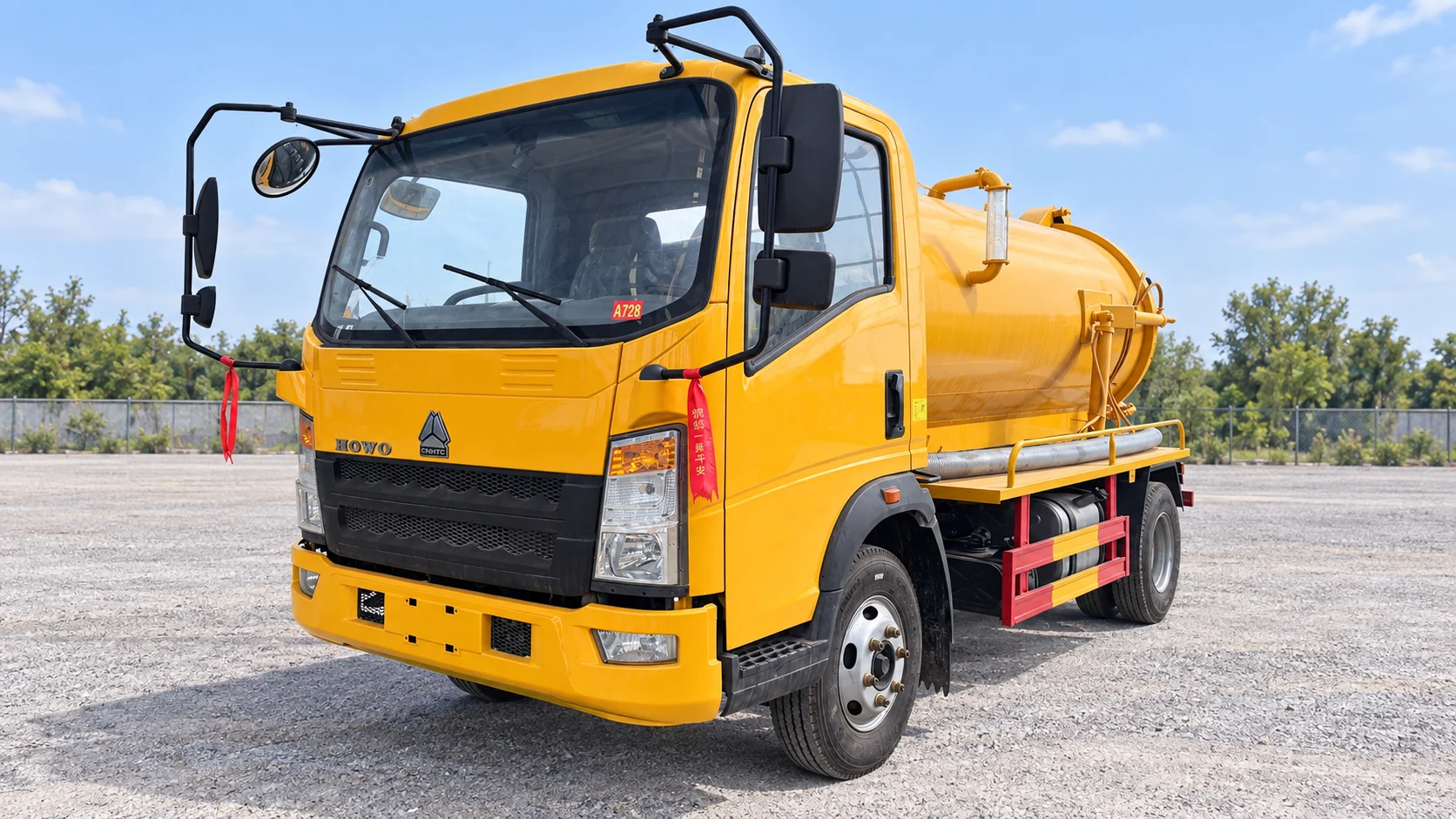

Sanitation vehicles
Waste collection & vacuum vehicles. The photographs in this collection may show different vehicles.

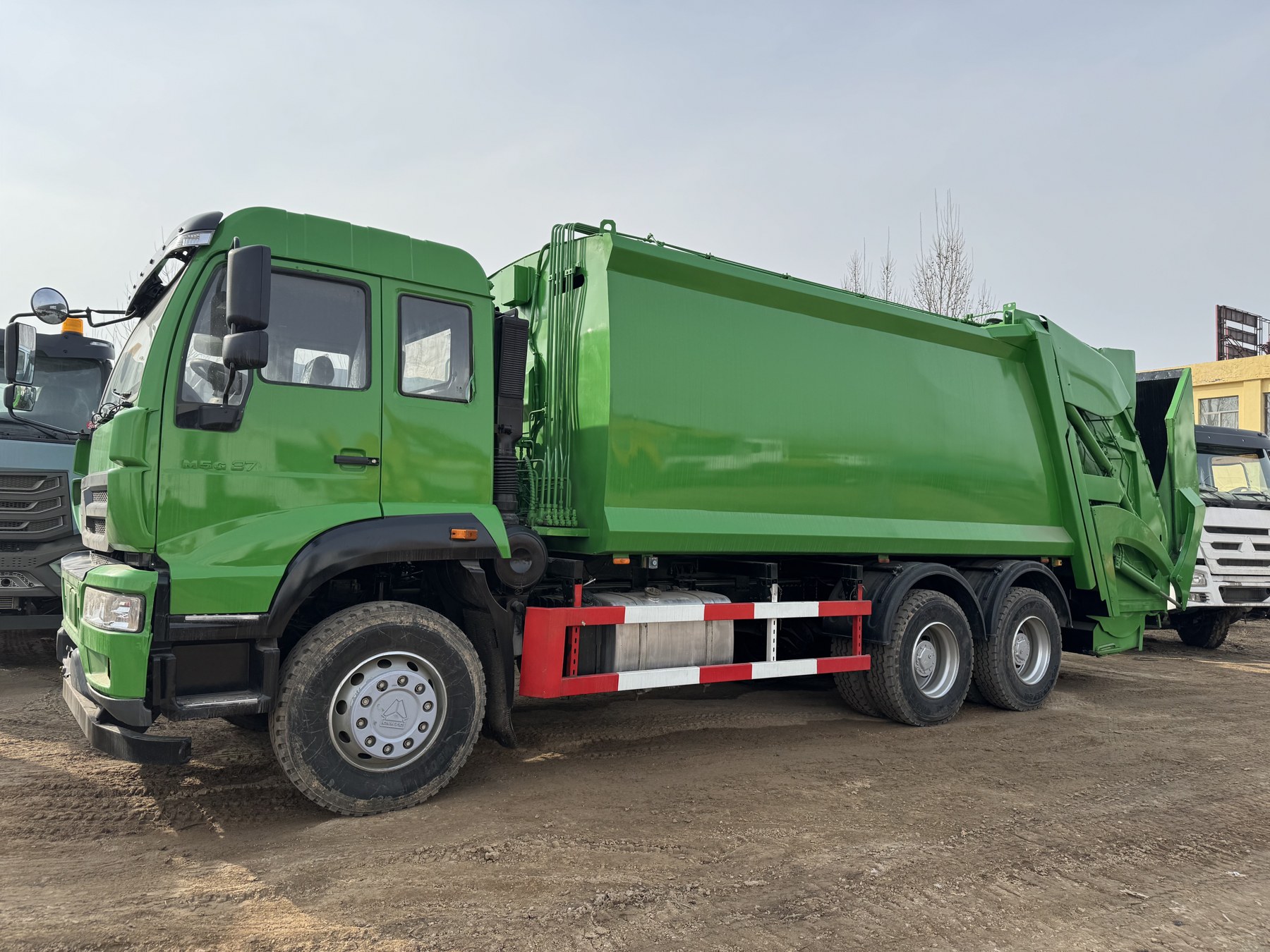

Photo reference: view-045
AI-enhanced presentation. Compare the original reference for visible condition.
This gallery contains reference photographs. Select a brochure model above for its published specifications; the model selection is independent of the photo reference.
Inquire about this photograph ↗View original reference ↗Reference images do not confirm a particular build or current stock. Ask sales to match the photo to the required configuration.
